5 Different Types of Retaining Walls Explained

A significant portion of the East Bay sits on hillside terrain. If your property is in Alamo, Danville, Lafayette, or Orinda, there's a good chance a retaining wall is already on your lot. What surprises many homeowners is how much wall type matters. The wrong material for your slope, soil load, and drainage conditions can cause a wall to shift or lean within a few years.

Elite Development Builders has installed retaining walls across Contra Costa County as part of our professional concrete services. Throughout the years, we’ve seen firsthand how different materials influence long-term performance.

Here’s a breakdown of the five main types of retaining walls and when each one makes sense.



Why Retaining Wall Types Matter in the East Bay

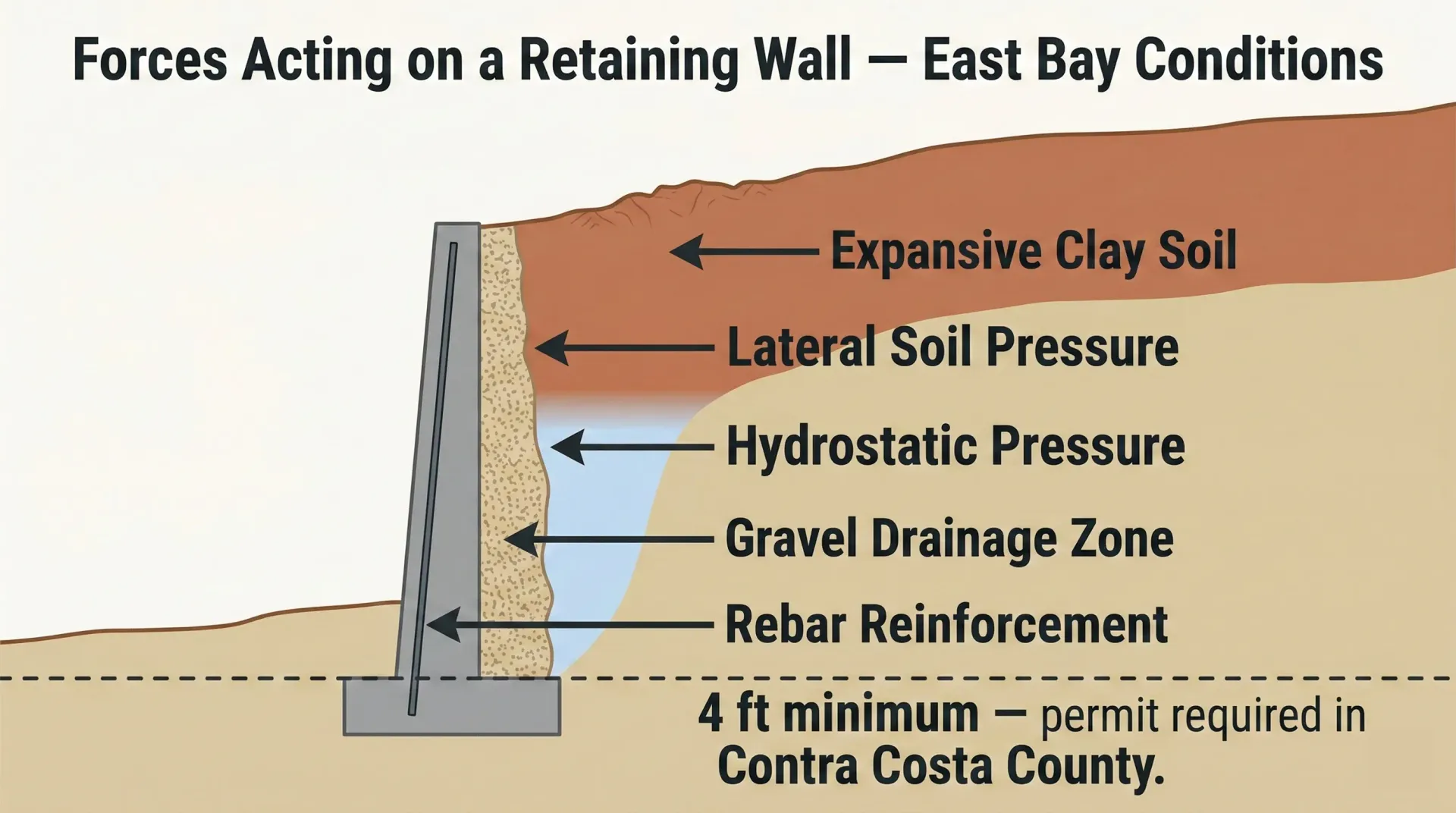

East Bay soil is predominantly expansive clay. It swells when wet and contracts when dry. That cycle puts lateral pressure on any wall holding back a slope. The region's atmospheric river storms can deliver heavy rainfall in short periods, adding hydrostatic pressure when drainage isn't engineered properly.

Choosing the right wall type is about matching material properties to real site conditions. In California, retaining walls over 4 feet tall (measured from the bottom of the footing) typically require a permit, which applies across most Contra Costa County municipalities. A licensed contractor pulls that permit as part of the scope.

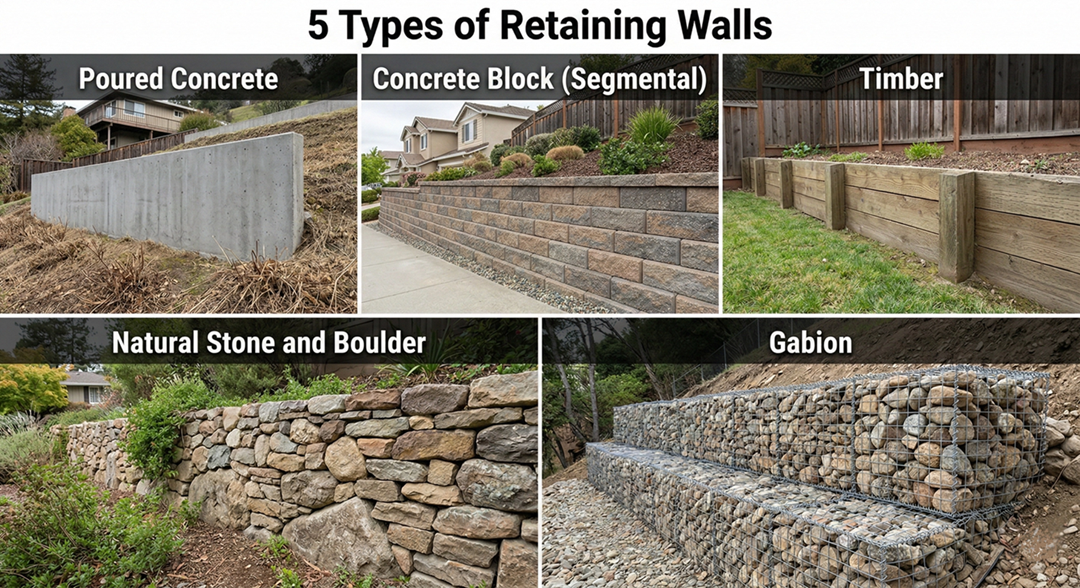

The 5 Main Types of Retaining Walls

Here are the five main retaining wall options and where each one performs best.

1. Poured Concrete Retaining Walls

Poured concrete walls are cast in place with rebar reinforcement, creating a monolithic structure with no joints or seams. They handle the heaviest lateral loads, making them the right call for steep hillside lots where soil depth behind the wall reaches 6 feet or more.

Forming and pouring requires more labor and equipment than block alternatives, so costs are higher. Finishing options are plain unless the face is stamped or veneered. When structural performance is the priority, poured concrete is the benchmark.

2. Concrete Block (Segmental) Retaining Walls

Segmental walls use interlocking concrete blocks that stack without mortar, relying on the wall's angled face and geogrid reinforcement anchored into the hillside. They're the most common choice across Contra Costa County because they balance strength, design flexibility, and cost.

Blocks come in multiple textures and colors, which matters for homeowners in Lafayette or Walnut Creek when they require structural performance that doesn’t sacrifice curb appeal.

Proper base preparation and a gravel drainage zone behind the wall are non-negotiable. Without them, even well-built segmental walls develop a lean after a few wet seasons.

3. Timber Retaining Walls

Pressure-treated timber walls are the least expensive option and work well for low-load applications: garden terracing, minor grade transitions, or landscape borders under 3 feet tall.

Their lifespan is the limiting factor: timber in the East Bay's wet winters often shows significant deterioration within 15 to 20 years depending on drainage and soil contact, and wood is more susceptible to pest damage than concrete.

For small backyard landscaping, timber is practical. For a structural wall on a hillside lot, it isn’t the right long-term investment.

4. Natural Stone and Boulder Walls

Dry-stacked stone and boulder walls hold back soil through mass and precise placement rather than mortar or fasteners. They drain naturally, reducing hydrostatic pressure buildup—an advantage during the East Bay rainy season.

They blend into the landscape better than concrete, making them a fit for Orinda and Lafayette properties where a natural finish is preferred. Placement has to be exact. Improperly stacked dry stone walls are a common source of slope failures after heavy rain. When done right, they're among the most durable options available.

5. Gabion Retaining Walls

Gabion walls are wire mesh cages filled with rock or cobble, stacked to form the wall structure. Water moves freely through the rock fill, making them well suited for sites where drainage and erosion control are the primary concern.

They work well on steeper slopes and larger grading projects. The aesthetic reads as industrial or naturalistic depending on fill material. Wire mesh requires periodic inspection in wet environments, but the core structure is durable.



Choose the Right Wall for Your Property

The right wall type comes down to four factors: height and load, soil conditions, drainage requirements, and aesthetic goals:

• Poured concrete: Handles the heaviest loads
• Segmental block: Balances performance and design flexibility for most residential slopes
• Timber: Suits low-load garden applications
• Stone and boulder: Works where drainage is good and a natural look is the priority
• Gabion: Addresses erosion concerns
